stuwe机械收缩盘伸缩免维护HSD 81 38

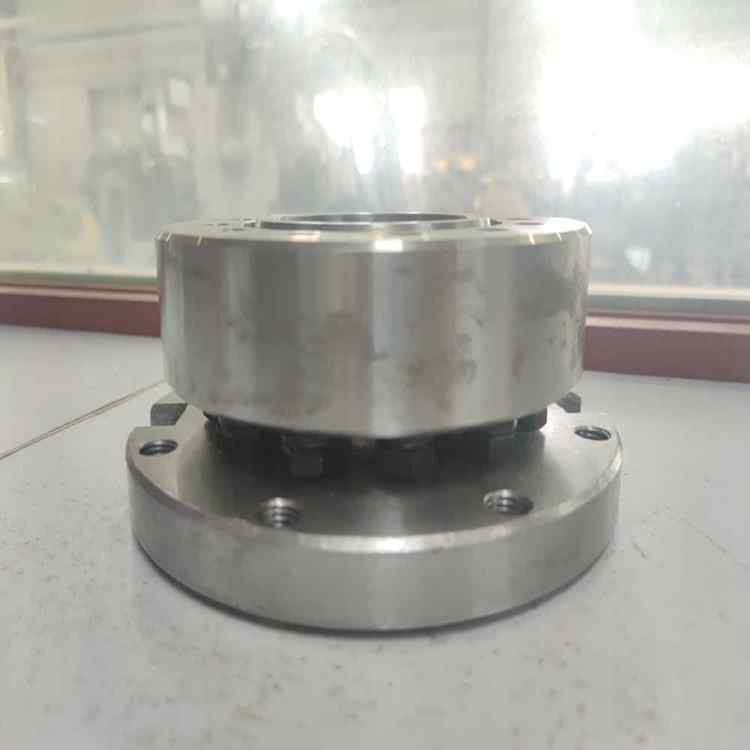

stuwe机械收缩盘：HSD系列
stuwe HSD型收缩盘是可移动的机械元件，用于将空心轴连接到轴上。伸缩缝是免维护的，由于压入配合的连接而不会弄脏，因此具有广泛的应用范围。HSD类型是风轮机传动系统，包装机或行李分拣系统中轴和轮毂的经济高效连接
高速缓存20
轴直径20-250 mm可
传递的扭矩0.15-18.3 kNm
低扭矩
二、stuwe产品分类：
stuwe机械收缩盘:HSD
stuwe收缩盘-液压：HYD
stuwe收缩盘-拆分：SDG
stuwe外部锁定单元；AS
stuwe轴联轴器：WK/WKL
stuwe法兰联轴器：FKH/FKHA/FKHYD
stuwe万向轴联轴器：GF
stuwe内部锁定单元：IS

三、stuwe产品应用
风力发电机
缓冲设备
传动系统技术
造船
护航系统
钢铁和轧钢厂
混合加工设备
量测设备
stuwe Areas of Application型号介绍：
stuwe HSD 20 20 - 250 mm 0,15 - 18,3 kNm Low torques
stuwe HSD 21 110 - 730 mm 16 - 4033 kNm Medium-sized torques
stuwe HSD 22 9 - 1050 mm 0,02 -16493 kNm High torques
stuwe HSD 23 100 - 1050 mm 26 -19684 kNm Very high torques
stuwe HSD 81 38 - 1050 mm 1,5 -19958 kNm Identical to series 22 but
20 - 30 % higher torques
stuwe HSD 83 100 - 1050 mm 30 - 23811 kNm Identical to series 23 but
20 - 30 % higher torques
1.1、Shrink Disc Type HSD – Series 20
*Tightening bolts: standard DIN EN ISO 4014/4017 Grade 10.9, alternative DIN EN ISO 4762 Grade 10.9
From M16 and larger with washers: DIN EN ISO 7416
When ordering please state: (Type x Ød) e.g. HSD 35 - 20 x 34
Shrink Disc Type HSD
HSD 24 - 20 24 20 0.15 15 12 6 x M6 50 11.5 17 38 25.5 1.5 0.2
21 0.17 17
22 0.21 19
